Concrete is the most widely used construction material in the world due to its durability, versatility, and strength. However, to ensure that concrete will perform as expected under load, it must be thoroughly tested. One of the most critical tests for concrete is the compression test, which is used to determine its compressive strength. Compressive strength is a fundamental property of concrete, as it dictates how well the material will resist compressive forces in real-world applications, such as in buildings, bridges, and roads. In this article, we will explore the role of concrete compression tests in ensuring structural strength.
What is Compressive Strength?
Compressive strength refers to the ability of concrete to withstand axial loads or compressive forces without failing. This is measured by subjecting concrete samples, typically in the form of cylinders or cubes, to a compressive load until they fail. The amount of stress the concrete can handle before breaking determines its compressive strength, usually measured in megapascals (MPa) or pounds per square inch (psi).
Compressive strength is essential because most structural elements—such as beams, slabs, and columns—are subjected to compressive forces. Ensuring that concrete has adequate compressive strength is critical for the stability and longevity of any construction project.
The Importance of Compression Tests in Concrete
Compression tests provide a clear and accurate measurement of concrete’s ability to bear heavy loads. This test is typically carried out on concrete samples that are cured under controlled conditions for a specific period (usually 28 days). The data from these tests is then used to verify that the concrete used in the construction project meets the required strength specifications.
Here are the key reasons why compression tests are vital for ensuring structural strength:
- Verification of Concrete Quality:
Concrete used in construction must meet specific strength requirements to ensure the safety and reliability of the structure. The compression test helps verify that the concrete mix has been correctly formulated, mixed, and placed. Any discrepancies, such as insufficient curing or poor-quality raw materials, can lead to reduced compressive strength, potentially compromising the entire structure. - Design and Material Selection:
Compression test results are crucial for engineers and architects when designing structural elements. The results ensure that the concrete mix is appropriate for the intended application, such as foundations, load-bearing walls, or slabs. For example, high-strength concrete is required for skyscrapers, bridges, and other critical structures, while regular-strength concrete may suffice for residential buildings. - Compliance with Building Codes and Standards:
Every construction project must comply with local and international building codes and standards. These codes typically specify minimum compressive strength requirements for different types of structures. Compression tests provide the data needed to confirm that the concrete meets or exceeds these requirements, ensuring the project is compliant and safe. - Predicting Structural Performance:
The results from compression tests help predict how a concrete structure will perform under load. Concrete with a higher compressive strength will be able to withstand greater forces, making it more suitable for high-load applications. This prediction is crucial for determining the load-bearing capacity of structural components, especially in large or tall buildings where safety is a top priority.
The Compression Test Procedure
The compression test procedure is relatively straightforward but requires precision to ensure accurate results. Here is an overview of the typical steps involved:
- Concrete Mixing and Molding:

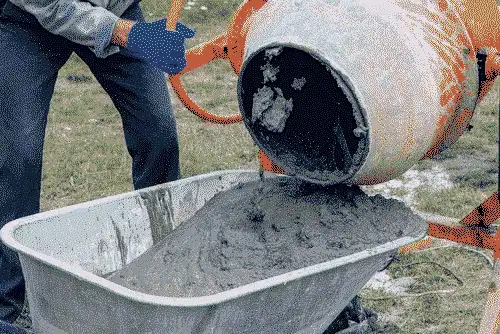

Fresh concrete is mixed according to the specified design mix. It is then poured into standard molds—usually cylindrical (150mm x 300mm) or cubic (150mm x 150mm) molds—to create test specimens. These molds are typically kept in a moist environment for curing. - Curing:
Concrete specimens are cured under controlled conditions, either in a water bath or by using other curing methods like moist burlap or plastic sheeting. Curing ensures that the concrete reaches its optimal strength by providing the necessary moisture for proper hydration. - Loading:
After the curing period (usually 28 days), the concrete specimen is placed in a compression testing machine. The specimen is centered in the machine, and a compressive force is applied gradually. The machine measures the amount of force applied until the specimen fails, at which point the machine records the maximum load the specimen could withstand. - Calculating Compressive Strength:
The compressive strength is calculated by dividing the maximum load applied by the cross-sectional area of the specimen. The formula for compressive strength is:
Compressive Strength=Maximum LoadCross-sectional Area\text{Compressive Strength} = \frac{\text{Maximum Load}}{\text{Cross-sectional Area}}Compressive Strength=Cross-sectional AreaMaximum Load
Ensuring Accurate Test Results
To ensure accurate and reliable results, several factors must be carefully controlled during the compression testing process:
- Proper Curing: Concrete must be cured correctly to achieve its full strength potential. If curing is insufficient, the compressive strength will be lower than expected.
- Correct Sample Handling: The concrete specimens must be handled with care to avoid damage before the test. Any cracks or imperfections can skew the results.
- Testing Machine Calibration: The compression testing machine must be calibrated regularly to ensure accurate load measurements.
- Consistency of Testing Conditions: The testing environment, including temperature and humidity, must be controlled to avoid any variability in test results.
Concrete compression tests are a fundamental part of ensuring the strength and safety of any construction project. These tests provide crucial information about the material’s ability to withstand compressive loads, helping engineers and architects make informed decisions about material selection, design, and construction techniques. By ensuring that concrete meets the necessary compressive strength requirements, compression tests play an essential role in guaranteeing the structural integrity and longevity of buildings, bridges, and other infrastructure.
In summary, concrete compression tests are not just a formality; they are a vital step in ensuring that concrete structures will perform as expected under load, ultimately protecting the safety of the public and the durability of the built environment.
